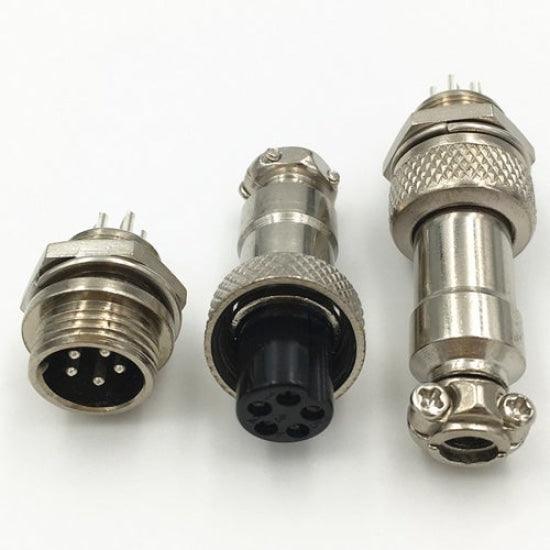

XLR 5 Pin Cable Connector 12mm Chassis Mount in Pakistan

Description

XLR 5 Pin Cable Connector 12mm Chassis Mount in Pakistan BR1030

Description:

An electrical connector is an electromechanical device used to join electrical conductors and create an electrical circuit. … inline or cable connectors permanently attached to a cable, so it can be plugged into another terminal (either a stationary instrument or another cable) Cable connector with two screws for extra tight pressure connection and additional cable. Diameter for mounting: 12mm, length approx. 46mm.

Features:

• • Shiny and smooth appearance.
  • Stable conductivity, safe, and reliability.
  • Ingenious self-locking design, male plug, and female jack are combined into a whole object for convenience and portability, but you can easily separate them through the operation.
  • Flame retardant/ fire retardant, long service life.

Specification:

• • • Condition: brand new
    • Shape: round
    • Pins: 5
    • Pin material: Copper-Nickel Plated
    • Installation Diameter: 12mm
    • Total Length: 47mm
    • Material: aluminum alloy
    • Color: silver
    • Ambient Temperature: -50℃ to 70 ℃
    • Rated Voltage: 400V
    • Rated Current: 5A
    • Withstand Voltage: 1500V AC
    • Vibration frequency: 10 ~ 100Hz, acceleration up to 100m / s2
    • Impact frequency: 60 to 80 beats / min, acceleration up to 250m / s2
    • Centrifugal: acceleration up to 250m / s2
    • Service life: >500 times of plug & unplug

Industryparts. pk Best Online Shopping website for XLR 5 Pin Cable Connector 12mm Chassis Mount 5 pin Plug Adapter. Here you get an XLR 5 Pin Cable Connector 12mm Chassis Mount 5 pin Plug Adapter at a reasonable price in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan, and all over Pakistan.

• YouTube Link
• Pinterest Link
• Instagram Link
• Facebook Link

Package Included:

   1 x XLR 5 Pin Cable Connector 12mm Chassis Mount
