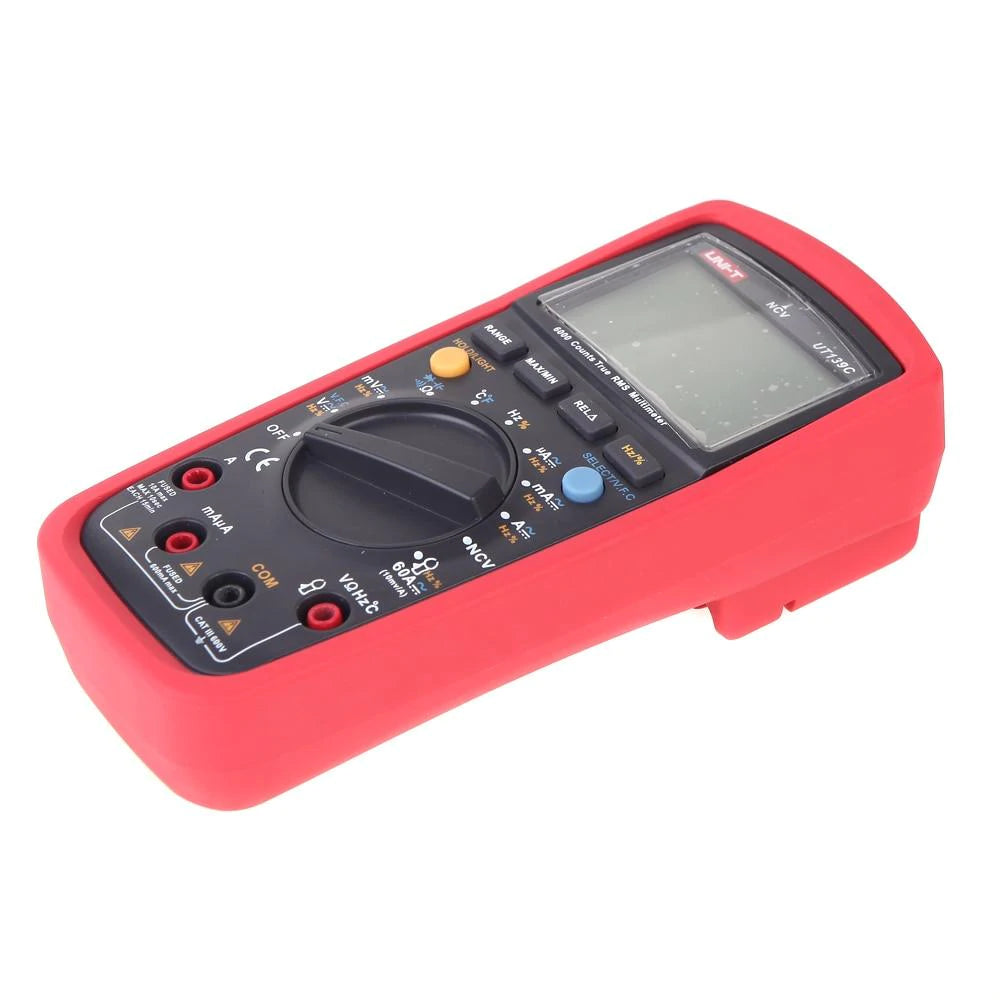

UT139C True RMS Auto Range Digital Multimeter in Pakistan BR144
Specifications
|
Range
|
Best Accuracy
|
| Model | UT139C | |
| DC Voltage (V) | 60mV/600mV/6V/60V/600V | ±(0.5%+2) |
| AC Voltage (V) | 60mV/600mV/6V/60V/600V | ±(0.8%+3) |
| DC Current (A) | 600?A/6000?A/60mA/600mA/6A/10A | ± (0.7%+2) |
| AC Current (A) | 600?A/6000?A/60mA/600mA/6A/10A | ±(1%+3) |
| Resistance (?) | 600?/6k?/60k?/600k?/6M?/60M? | ±(0.8%+2) |
| Capacitance (F) | 9.999nF/99.99nF/999.9nF/9.999?F/99.99?F/ | ±(4.0%+5) |
| 999.9?F/9.999mF/99.99mF | ||
| Frequency (Hz) | 10Hz-10MHz | ±(0.1%+4) |
| Temperature (°C) | -40 °C~1000°C | ±(1.0%+3) |
| Temperature (°F) | -40°F~1832°F | ±(1.5%+5) |
Features
|
||
| Display Count | 6000 | |
| Auto Range | ? | |
| Manual Range | ? | |
| True RMS | ? | |
| Bandwidth (Hz? | 45Hz ?1kHz | |
| V.F.C | ? | |
| Duty Cycle | 0.1% ? 99.9% | ? |
| Diode | Around 3V | |
| NCV | ? | |
| Auto Power Off | Around 15 Minutes | ? |
| Continuity Buzzer | ? | |
| Low Battery Indication | ?2.5V | ? |
| Data Hold | ? | |
| Relative Mode | ? | |
| MAX/MIN | ? | |
| LCD Backlight | ? | |
| Input Protection | 600Vrms | ? |
| Input Impedance for DCV | 1G? Max | ? |
General Characteristics
|
||
| Power | AA1.5*2 | |
| LCD Size | 58mm × 36 mm | |
| Product Colour | Red and Grey | |
| Product Net Weight | 370g | |
| Product Size | 175mm x 81mm x 48.5 mm | |
| Standard Accessories | Battery, Test Leads, Temperature Probe | |
| Standard Individual Packing | Gift Box, English Manual | |
| Standard Quantity Per Carton | 40 PCs | |
| Standard Carton Measurement | 645mm×450mm×340mm (0.098CBM Per Standard Carton) | |
| Standard Carton Cross Weight | 25.5 Kg | |
| Optional Accessories* | ||
| Current Sensor AC/DC40A | ||
Package includes:
1x UT139C True RMS Digital Multimeter
