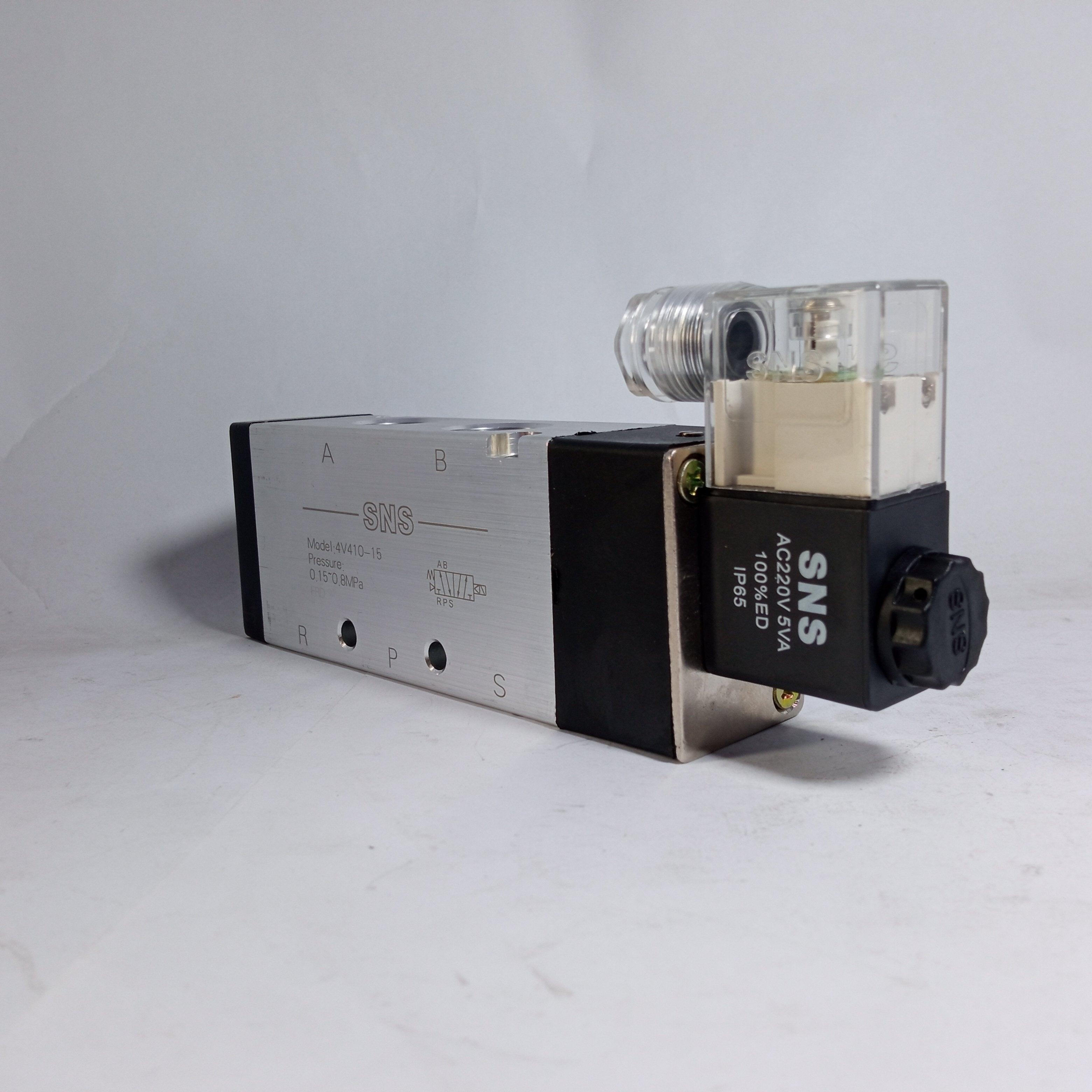

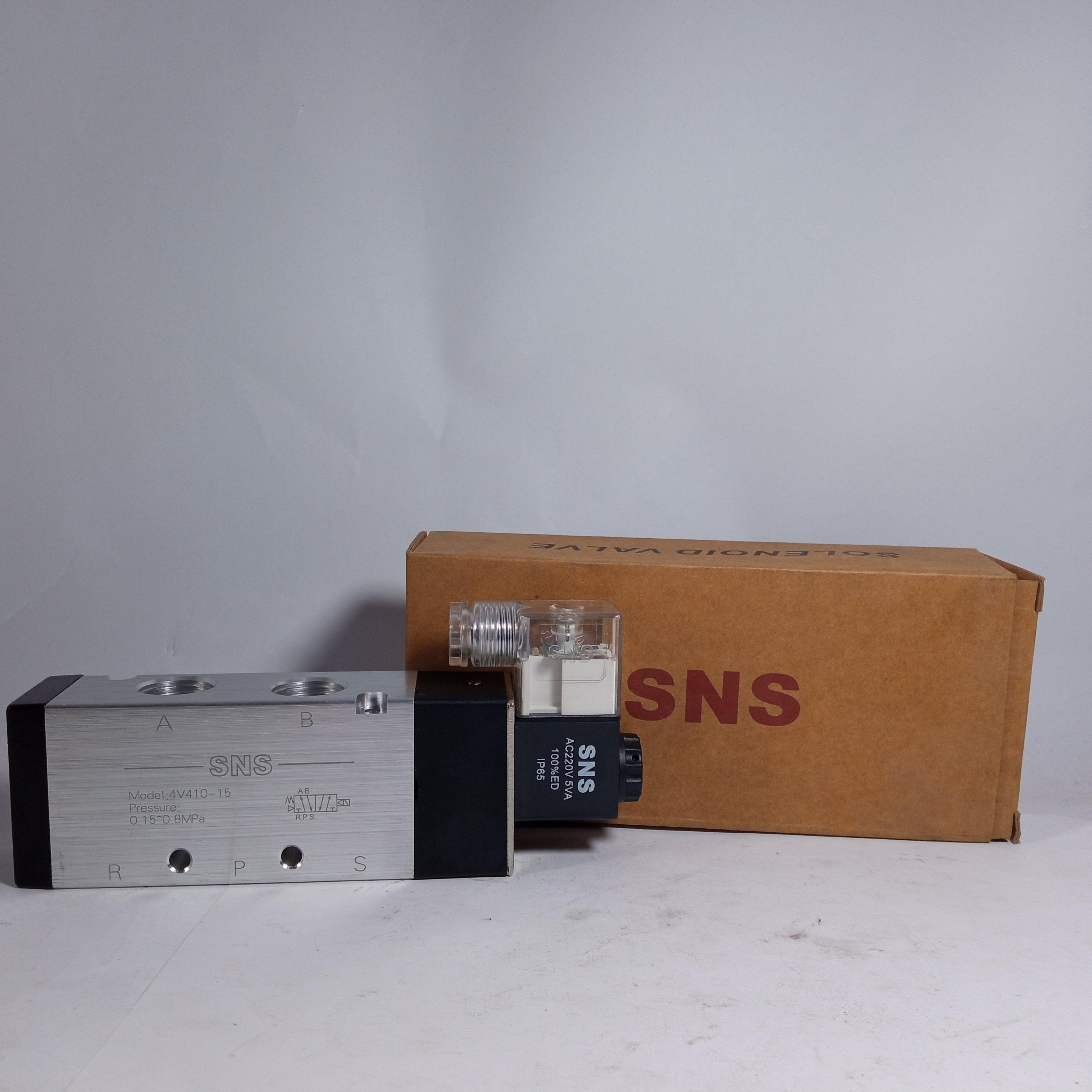

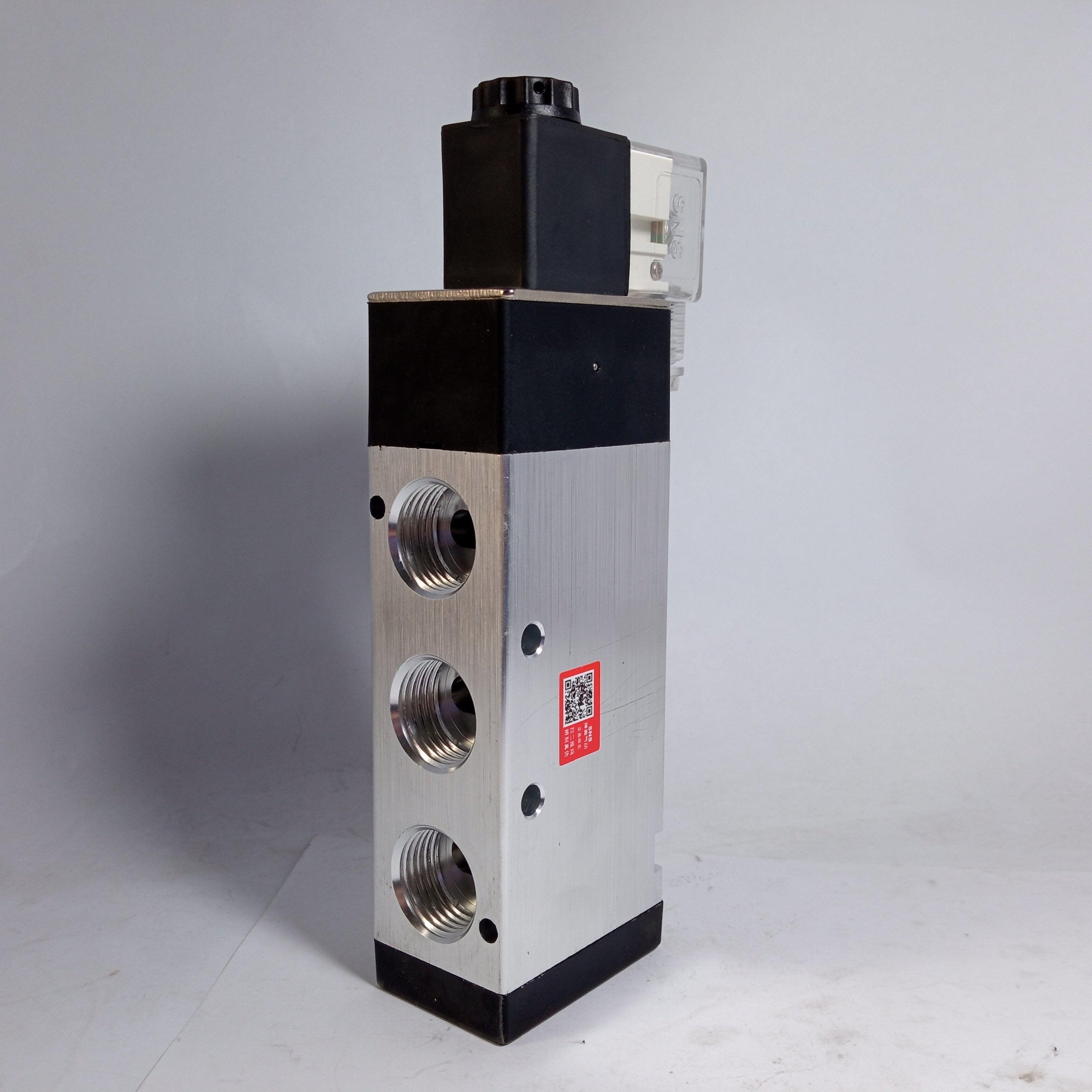

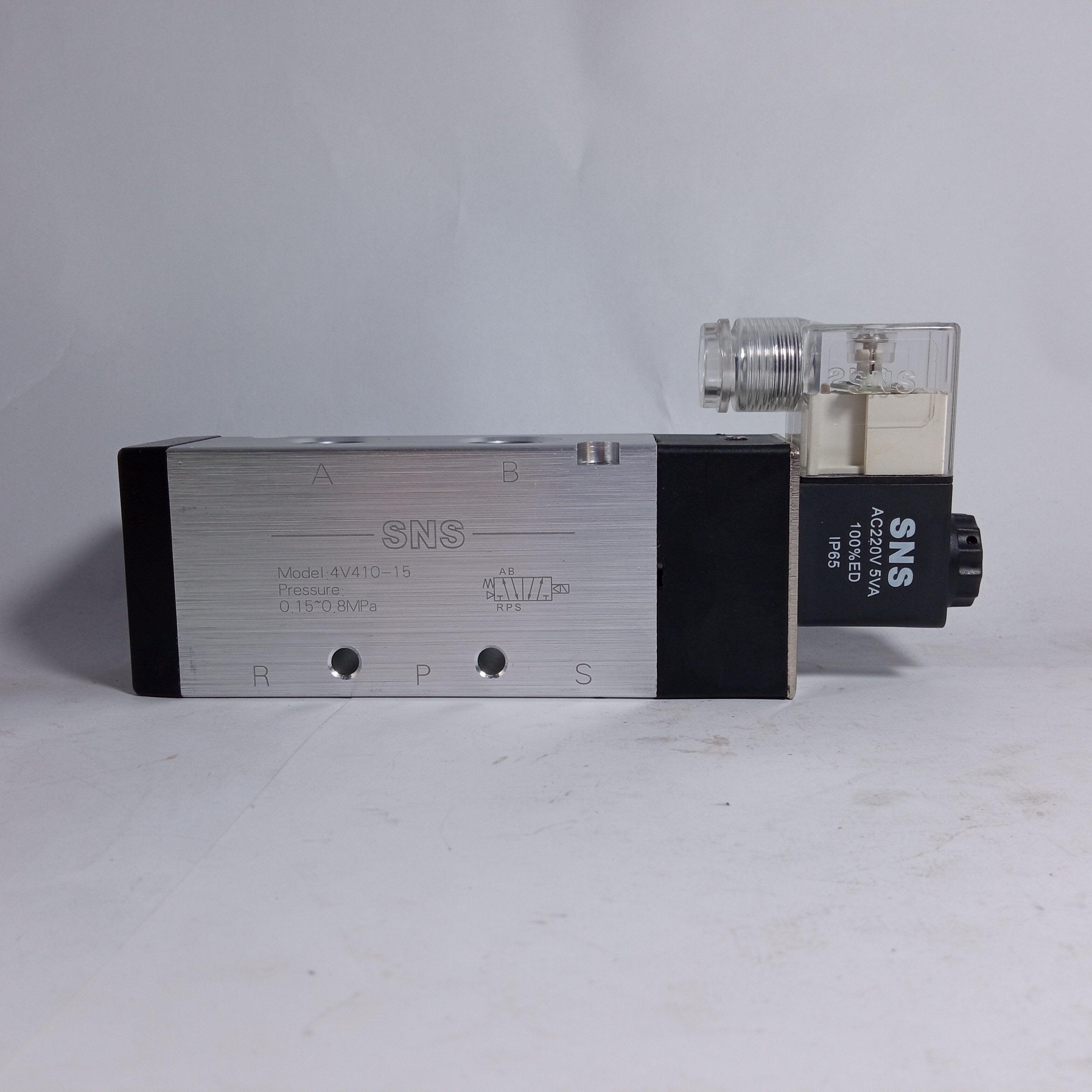

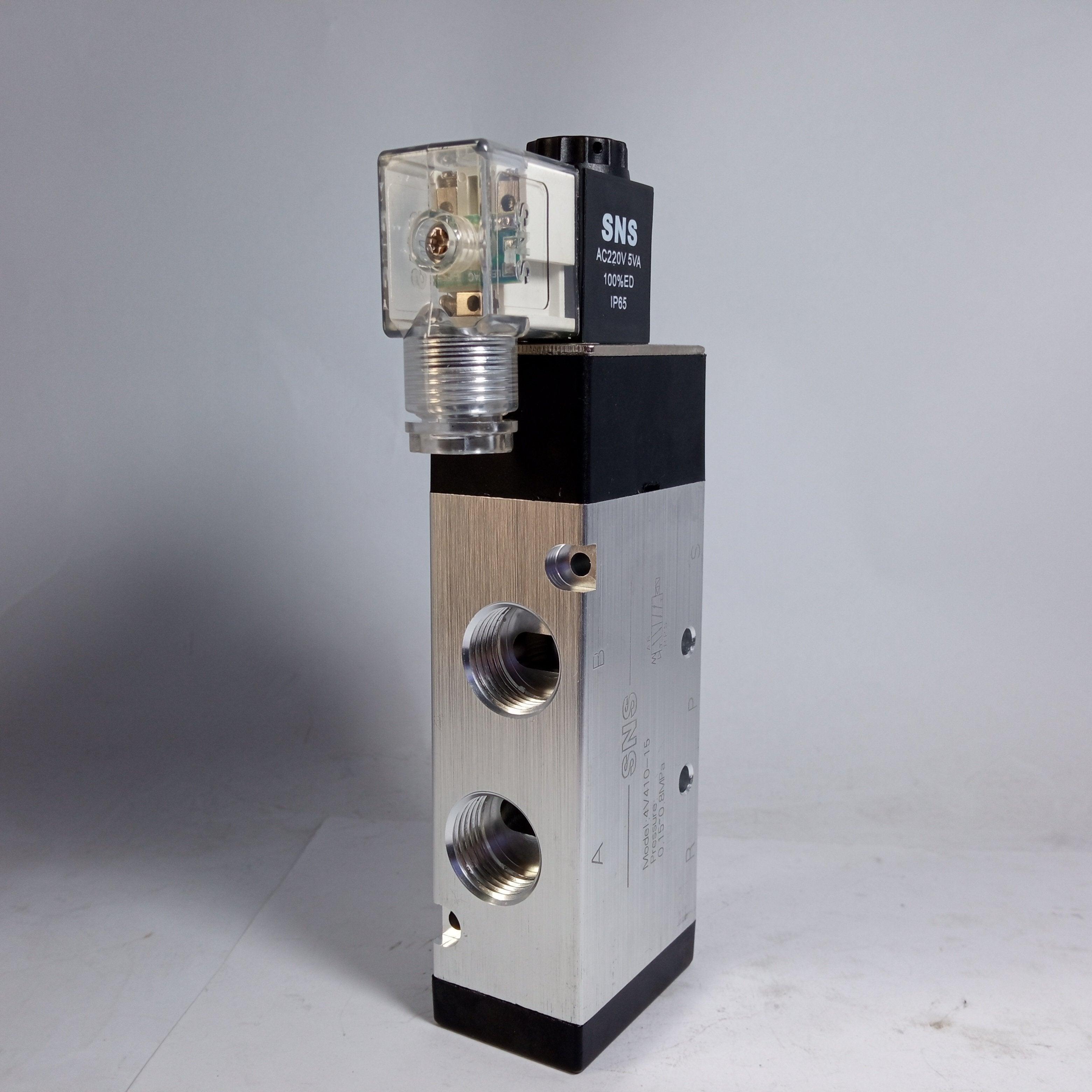

Two Five-Way Solenoid Valve 4V210-06 / 08 4V110-06 4V310-10 4V410-15 (SNS) in Pakistan
Description
2/5 way is a five port, two-position valve that will put a fluid or air into one end of a double-acting device as well as allowing the other end vent to exhaust. … Normally closed (N.C.) means that when the solenoid valve is not energized the supply pressure port is closed off.
Specifications:
- Model: 4V210-06 / 08 4V110-06 4V310-10 4V410-15 (SNS)
- Valve Type: 5/2 way Solenoid Valve
- Effective Cross Sectional Area: 25 sq mm CV = 1.40
- Coil Type: Double Coil
- Port Size: 1/4″ NPT Inlet, Outlet, and exhaust
- Connection: Threaded
- Initial Status: Normal Close
- Working Medium: 40 Micron Filtered Air
- Operation: Internal Piloted
- Working Pressure: 0.15 – 0.8 Mpa / 22 – 116 psi
- Max. Tested Pressure: 1.2 Mpa / 174 psi
- Ambient Temperature: 5 – 50 ℃ 41 – 122 ℉
- Operating Voltage Tolerance: ± 10%
- Power Consumption: 3W for DC / 3.5VA for AC
- Wiring/Connector: DIN Connector
- Response Time: 0.05 Sec
Best Online Shopping website for Two Five-Way Solenoid Valve 4V210-06 / 08 4V110-06 4V310-10 4V410-15 (SNS). Here you get Two Five-Way Solenoid Valve 4V210-06 / 08 4V110-06 4V310-10 4V410-15 (SNS) at a reasonable price in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan, and all over Pakistan.
Package Includes:
1 x Two Five-Way Solenoid Valve 4V210-06 / 08 4V110-06 4V310-10 4V410-15 (SNS)
