Description
A Temperature Sensor measures the temperature of a location where temperature control is required. It converts the temperature to a physical quantity of a voltage or resistance and outputs that.
Switch the modes between cool and heat:
- Control temperature by setting the temperature setting value and the difference value
- Temperature calibration
- Refrigerating control output delay protection
- Alarm when temperature exceeds temperature limit or when sensor error.
Specification:
- Front panel size: 75×34.5(mm)
- Mounting size: 71×29(mm)
- Product size: 75×34.5×85(mm)
- Sensor length: 1 meter (include the probe)
- Technical Parameters:
- Temperature measuring range: -55-120 Celsius
- Accuracy: 0.1 Celsius
- Sensor error delay: 1 minute
- Power supply: DC 12V DC 24V AC 110-220V
- Power consumption: <3w
- Sensor: NTC sensor
- Relay contact capacity: Cool (10A/240VAC); Heat (10A/240VAC)
- Ambient temperature: 0-60 Celsius
- Storage temperature: -30-75 Celsius
- Relative humidity: 20-85%(No condensate)
Packages Include:

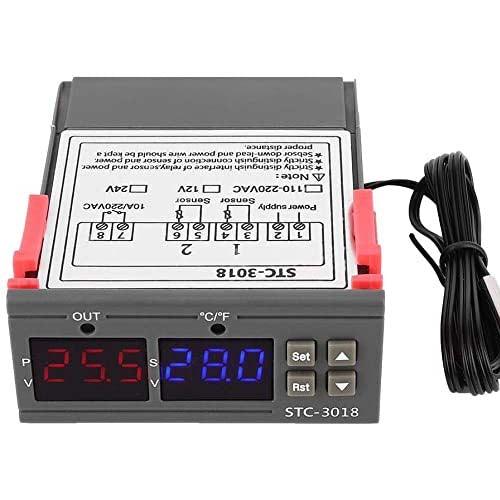

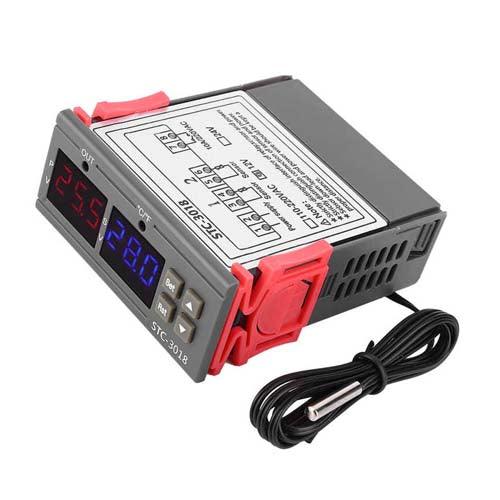

1 x STC-3018 Thermostat Digital Temperature Controller Sensor
