Description
SSR solid state relay uses inflaming retarding engineering plastic shell, epoxy resin encapsulation, and screw terminal connection. This series of solid-state relays have high structural strength, impact resistance, and strong resistance to viability. The low input drives current makes it convenient to connect with a computer terminal and various digital programmable interface circuits.
Features:
- Reliable SMT technology
- High ultra insulation resistance over 50M?/500V DC
- High dielectric over 2.5KV
- Low EMI/EFI & surge by zero cross trigger method
- High surge current over 410A/one cycle (60Hz)
- High surge voltage duration by the snubber circuit
Specification:
- Model: SSR-40 DA
- Control Mode: DC-AC
- Load Voltage: 24-380VAC
- Load Current: 40A
- Control Voltage: 3-32VDC
- Control Current: DC3-25mA
- Working voltage: 250V
- On voltage: ?1V
- One-off Time: ?10ms
- Off leakage Current: ?2mA
- Installation Method: Bolt Fixed
- Working Indication: LED
- Solid State Relay Fotek SSR-40 DA

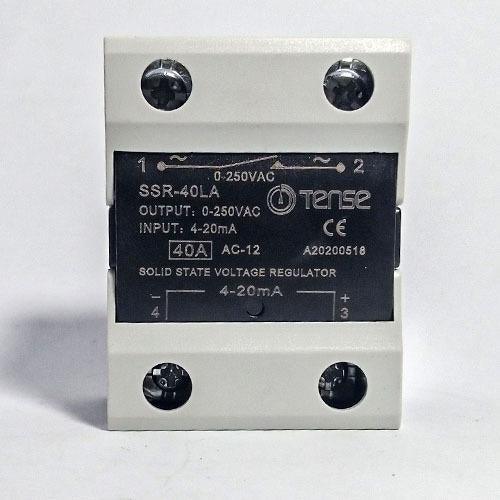

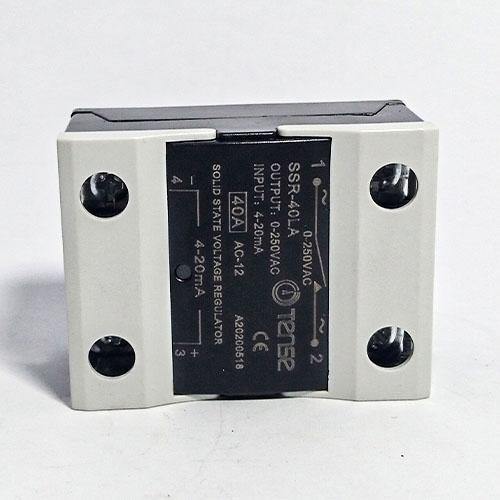

Industryparts.pk is the Best Online Shopping website for Solid State Relay Voltage Regulator SSR-40LA Tense. Here you get Solid State Relay Voltage Regulator SSR-40LA Tense at a reasonable price in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan, and all over Pakistan.
Package Includes:
1 x Solid State Relay Voltage Regulator SSR-40LA (Tense)
