Description
A Micro Switch is a small, very sensitive switch which requires minimum compression to activate. They are very common in home appliances and switch panels with small buttons. … Because they are reliable and sensitive, micro switches are often used as a safety device.
Features:
- Excellent accessibility, stable performance, practical and convenient
- This Limit Switch can be widely used in various mechanical to monitor the position of moving parts of machines and plants.
- Also can be used in circuits, control circuits,s and auxiliary circuits for terminal limit protection.
Specification:

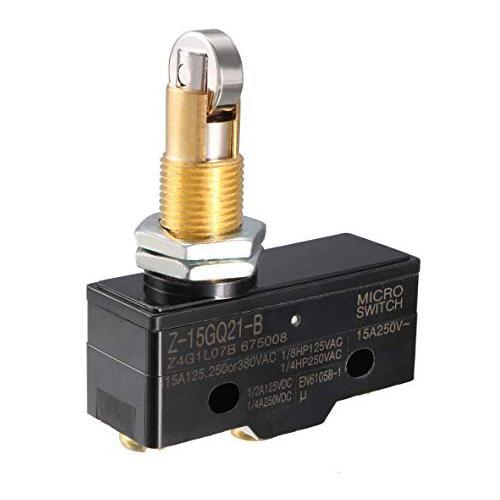

- Product Name: Micro Switch
- Model No.: Z-15GQ21-B
- Contact Type: 1NO, 1NC
- Mounting Type: Panel Mount
- Actuator Type: Roller Plunger
- Termination Style: Screw Terminal
- Terminal Number: 3
- Rating: 15A 125.250or380VAV; 1/8HP125VAC 1/4HP250VAC; 1/2A125VDC 1/4A250VDC
- Protection degree: IP62
- Overall Size: 61x50x18mm/2.4×1.97×0.71inch(L*W*H)
- Thread Diameter: 12mm/0.47inch
- Net Weight : 54g
Package includes:
1 x Microswitch 15A 125, 250VAC
Industryparts.pk is the Best Online Shopping website for OMRON-Z-15GQ21-B-Limit Switch. Here you get OMRON-Z-15GQ21-B-Limit Switch at a reasonable price in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan, and all over Pakistan.
