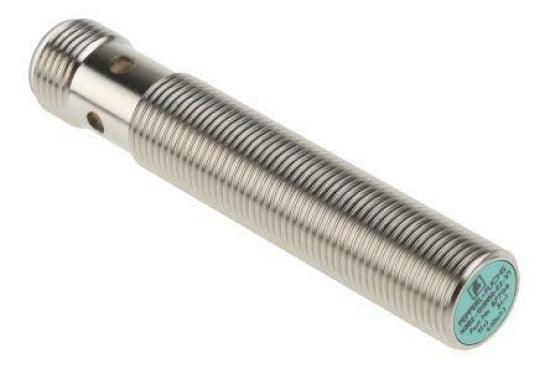

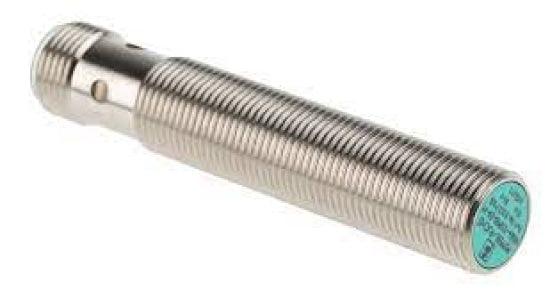

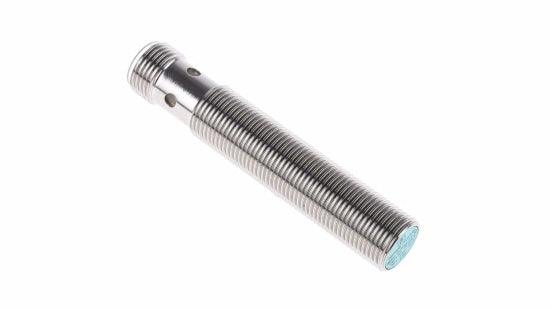

NBB4-12GM50-E0-V1 Pepperl+Fuchs, M12,NPN-NO Inductive Sensor 65mm Length,10 ? 30 V dc

Description

NBB4-12GM50-E0-V1 Pepperl + Fuchs, M12 , NPN-NO Inductive Sensor 65mm Length, 10 ? 30 V dc in pakistan BR1933

 NBB4-12GM50-E0-V1 Pepperl+Fuchs, M12,NPN-NO Inductive Sensor 65mm Length,10 ? 30 V dc in Pakistan.

Specification:




• Switching function Normally open (NO)



• Output type NPN



• Rated operating distance 4 mm



• Installation flush



• Output polarity DC



• Assured operating distance 0 … 3.24 mm



• Nominal ratings



• Operating voltage 10 … 30 V



• Switching frequency 0 … 800 Hz



• Hysteresis typ. 5%



• Reverse polarity protection reverse polarity protected



• Short-circuit protection pulsing



• Voltage drop ? 3 V



• Operating current 0 … 200 mA



• Off-state current 0 … 0.5 mA typ. 0.1 µA at 25 °C



• No-load supply current ? 15 mA



• Switching state indicator Multihole-LED, yellow



• Functional safety related parameters





Features:




• MTTFd 1679 a



• Mission Time (TM) 20 a



• Diagnostic Coverage (DC) 0 %



• Approvals and certificates



• UL approval cULus Listed, General Purpose



• CSA approval cCSAus Listed, General Purpose



• CCC approval CCC approval / marking not required for products rated ?36 V



• Ambient conditions



• Ambient temperature -25 … 70 °C (-13 … 158 °F)



• Mechanical specifications



• Connection type Connector M12 x 1 , 4-pin



• Housing material brass, nickel-plated



• Sensing face PBT



• Housing diameter 12 mm



• Degree of protection IP67





Packages Include:

 1 x NBB4-12GM50-E0-V1 Pepperl+Fuchs, M12,NPN-NO Inductive Sensor 65mm Length,10 ? 30 V dc
