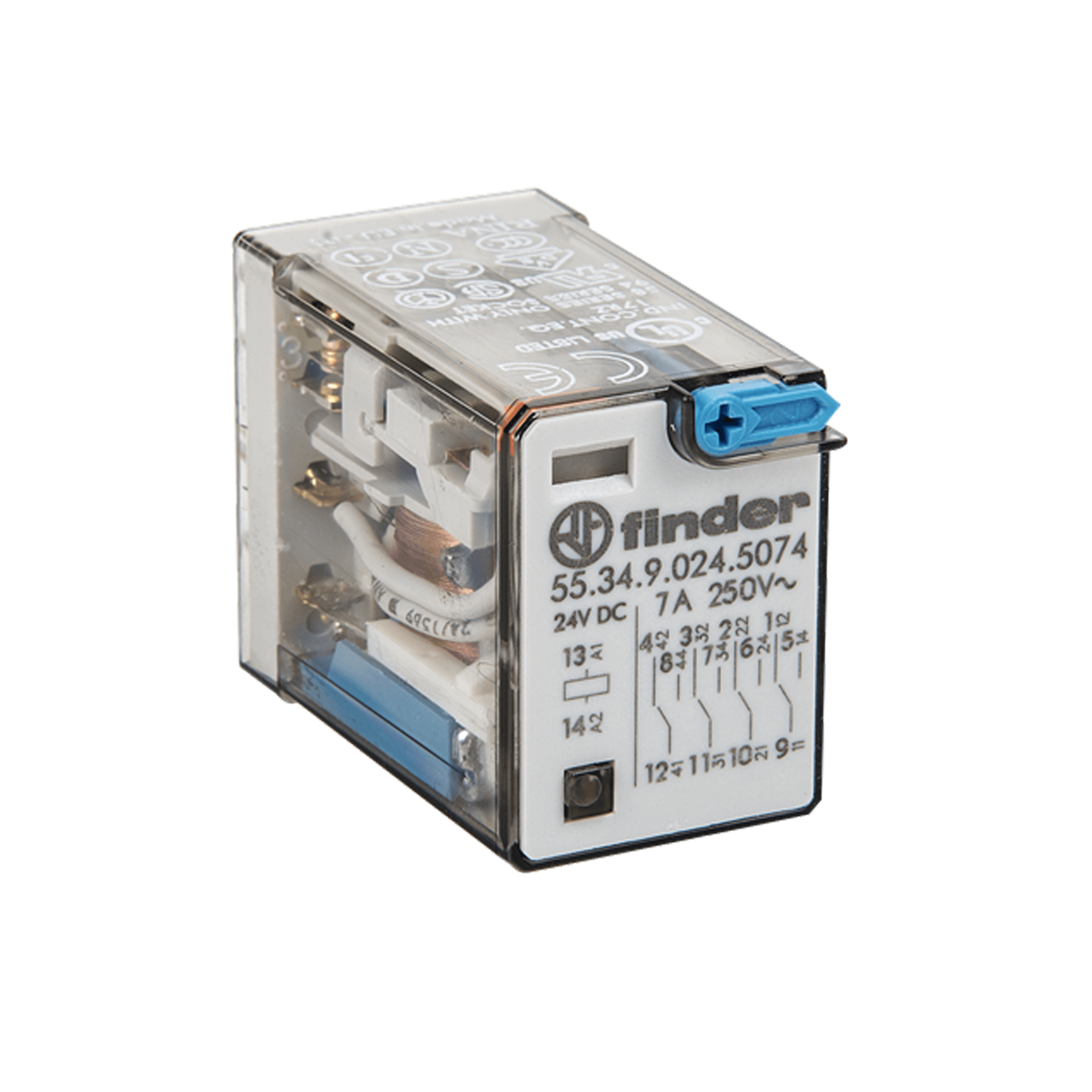

MINIATURE GP RELAY 7A 4CO 24VDC

Description

MINIATURE GP RELAY 7A 4CO 24VDC in pakistan BR1826

 MINIATURE GP RELAY 7A 4CO 24VDC

 Product Series 55
 Component Type Timers and Control relays Relay


Specification:

 Contact Configuration 4 CO
 In, Rated Current 7 A
 Icw, Short Time Withstand Current, 10ms (rms) 15 A, 10ms
 Un, Nominal Operational Voltage, AC 250 V AC
 Ue, Rated Operational Voltage, AC, max 250 V AC
 Rated Load, AC-1 1750 VA
 Rated Load, AC-15 350 VA
 Contact Rated Power, Single Phase Motor, 230V AC 0.125 kW
 Material, Contacts Silver Nickel (AgNi) material
 Mechanical service life 50000000 cycles
 Electrical Service Life at Un, In 150000 cycles
 Total Making Time 11 ms
 Total Breaking Time 3 ms
 Insulation Voltage, between Coil & Contacts 4000 V
 Dielectric Strength, between open Contacts 1000 V AC
 Mounting Plug-in
 Operating Temperature, Min -40 °C min
 Operating Temperature, Max 85 °C max
 Height 37.2 mm
 Width 27.7 mm
 Depth 20.7 mm
 Shock Acceleration (Max.) 16 g
 Shock Duration (Max.) 3 ms
 Vibration Acceleration (Max.) 15 g
 Vibration Frequency, Operational (Max.) 55 Hz
 Certifications CE
 CCC
 CSA
 EAC
 GOST-R
 IMQ
 C-UR-US
 VDE
