Description

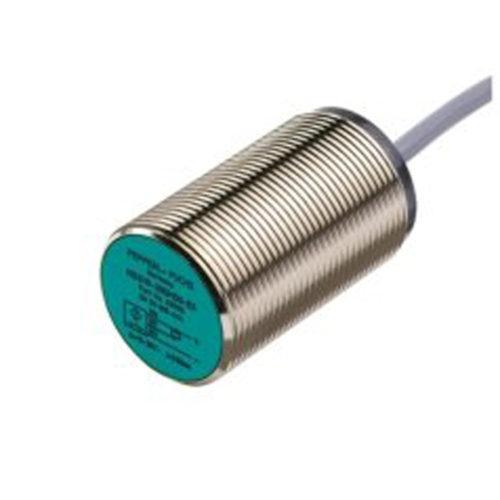

Inductive sensor NBB15-30GM50-UO BR2032
:General Specifications:
|
||
|---|---|---|
| Switching function | Normally closed (NC) | |
| Output type | Two-wire | |
| Rated operating distance | 15 mm | |
| Installation | flush | |
| Output polarity | AC/DC | |
| Reduction factor rAl | 0.5 | |
| Reduction factor rCu | 0.45 | |
| Reduction factor r304 | 0.75 | |
| Output type | 3-wire | |
Nominal ratings
|
||
| Operating voltage | 20 … 250 V AC/20 … 300 V DC | |
| Switching frequency | 30 Hz | |
| Hysteresis | 3 … 15 typ. 5 % | |
| Reverse polarity protection | yes | |
| Short-circuit protection | yes | |
| Voltage drop | ? 8 V | |
| Operating current | 4 … 500 mA AC/DC | |
| Off-state current | ? 0.8 mA | |
| Operating voltage indicator | LED, green | |
| Switching state indicator | LED, yellow | |
Approvals and certificates
|
||
| UL approval | cULus Listed, General Purpose | |
| CSA approval | cCSAus Listed, General Purpose | |
| CCC approval | Certified by China Compulsory Certification (CCC) | |
Ambient conditions
|
||
| Ambient temperature | -25 … 70 °C (-13 … 158 °F) | |
| Storage temperature | -40 … 85 °C (-40 … 185 °F) | |
Mechanical specifications
|
||
| Connection type | cable PUR , 2 m | |
| Core cross-section | 0.5 mm2 | |
| Housing material | brass, nickel-plated | |
| Sensing face | PBT | |
| Degree of protection | IP67 | |
Packages Include:
1 x Inductive sensor NBB15-30GM50-UO
