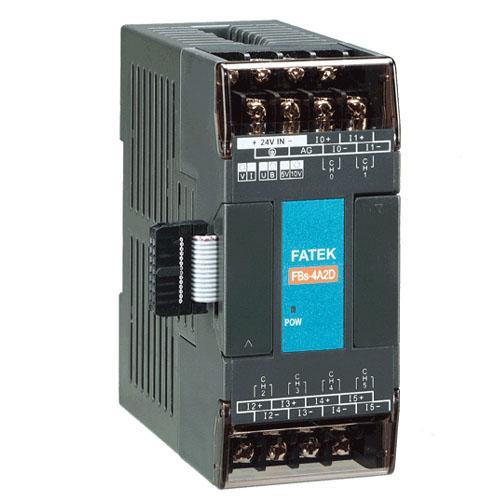

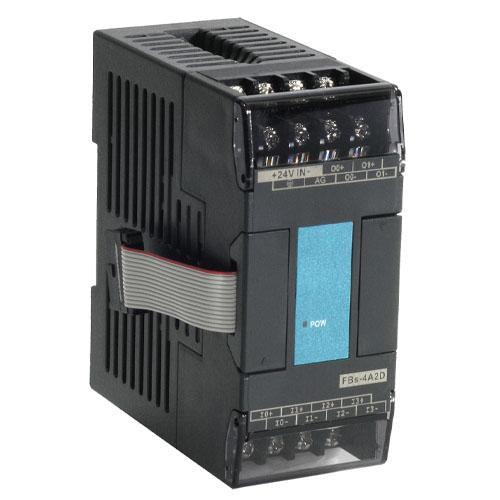

Fatek PLC Analogue Expansion Modules FBs-4A2D in Pakistan

Description

FBs-4A2D is one of the analog I/O modules of FATEK FBs series PLC. For analog output it provides 2 channels of 14 bit D/A output. Base on the different jumper settings it can provide varieties of current or voltage output  signal. The output code can be configured as uni polar or bipolar which makes the relation of output code and real output signal more intuitive. For safety, the output signal will be automatically forced to zero(0V or 0mA) when the module is not serviced by CPU for 0.5 second. For analog input it provides 4 channels A/D input with 12 or 14 bit effective resolution.

Specification:

• Model Number: FBs-4A2D
• Application: general
• Brand Name: Fatek
• Dimension: 50 * 40 * 35 cm
• Weight:1.5 kg

Industryparts.pk Best Online Shopping website for Fatek PLC Analogue Expansion Modules FBs-4A2D in Pakistan. We deliver in Karachi, Lahore, Islamabad, Rawalpindi, Peshawar, Quetta, Multan, and all over Pakistan.

Packages Include:

1 x Fatek PLC Analogue Expansion Modules FBs-4A2D
