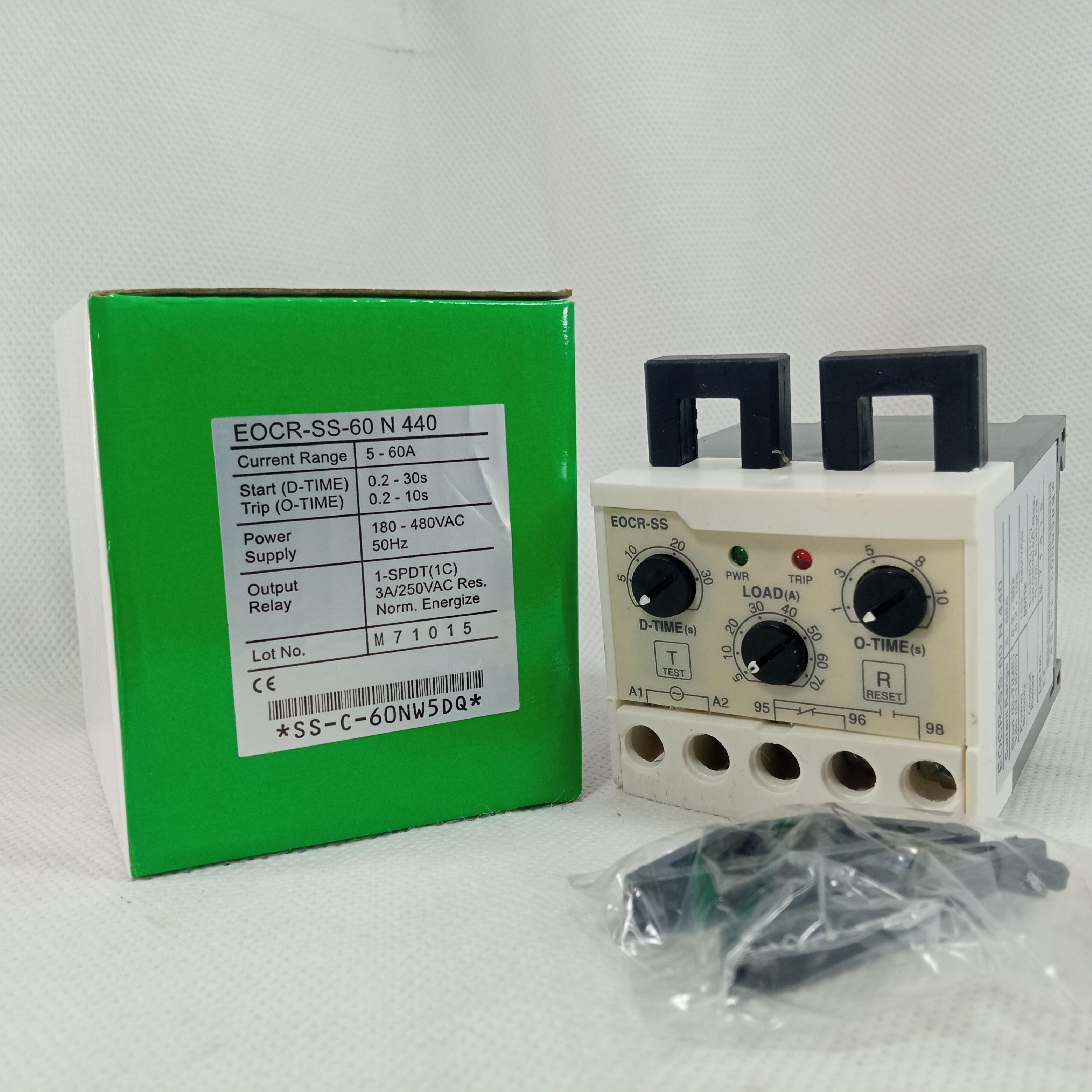

Electronic Over Load Relay EOCR-SS 5 – 70Amp in Pakistan

Description

 Overload and Phase Loss Protection  2 Integral Current Transformers  Electronic Shear-pin function  Independently Adjustable Starting Trip Delay (D-Time) & Overload Trip Delay Time (O-Time)

Features:

• Compact Design
• Overload / Phase Loss / Locked Rotor Protection
• Independently Adjustable Starting Trip Delay & Operating Time
•  Wide Current Range:0.1~600A
•  Wide Operating Voltage Range
•  PWR & Trip Indication LED
• Manual / Electric Reset
•  Ambient Insensitive
• Low Energy Consumption

Specification:

• Usage: Protective
• Contact Load: Low Power
• Theory: Electronic Overload Relay
• Model Number: EOCR-SS
• is_customized: Yes
• Protect Feature: Sealed
• Power Source: AC
• Power supply: 180v AC to 440v AC
• Current Range: 0.5A-6.5A and 5A-70A (both available)
• Time Characteristics: Definite Time
• Power Consumption: Under 2W
• Operation Time:0.2-30SECONDS O-TIME:0.2-10SECONDS
• Accuracy:plus-minus 10% Time:plus-minus 15% of max. time set value
• Size: Miniature
• Current Sensing:2 CTs
• Mounting:35mm Din Rail or Panel
• Reset: Manual or remote electrical by interrupting the supply

Package Includes:

1 x  Electronic Over Load Relay (EOCR-SS) 5 – 70Amp
