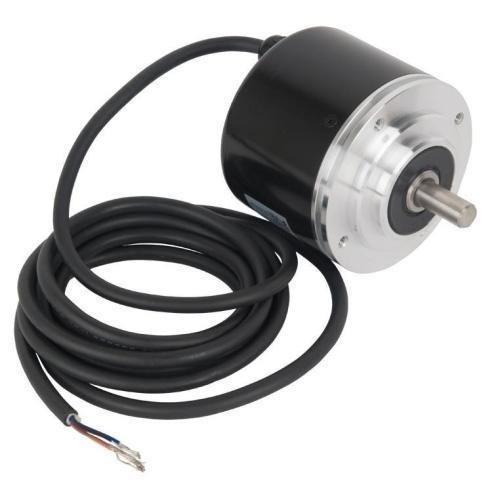

256PPR OMRON Incremental Rotary Encoder E6B2-CWZ6C in Pakistan

Description

An incremental rotary encoder is a type of electromechanical device that converts the angular motion or position of a rotary shaft into analog or digital code that represents that motion or position.

Specification:

• Series: E6B
• Encoding Method: Incremental
• Resolution: P/R 256
• Control Output (Output type): NPN open-collector output
• Max: Force Radial 30 N
• Max Force: Thrust 20 N
• IP Rating: IP50
• Power Supply: Voltage 5 VDC -5% to 24 VDC +15% (ripple (p-p): 5% Max.)
• Max Rotation Frequency: r/min 6000 r/min
• Height: (mm) 40
• Width: (mm) 40
• Depth: (mm) 39
• Weight: (kg) 0.252

Packages Include:

 1 x  256PPR OMRON Incremental Rotary Encoder E6B2-CWZ6C
