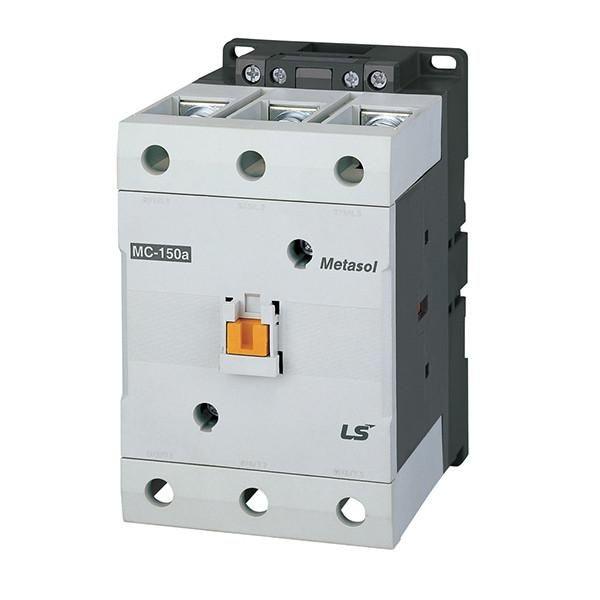

LS MC-150a Meta sol Contactor

Description

LS MC-150a Meta sol Contactor in Pakistan BR1244

 The LS Meta sol range of contractors provides trouble-free switching and maximum protection for motors and other electrical equipment. They are compact, easy to install and extremely reliable.

Features:


• Compact design for space saving



• DIN rail and screw mountable



• Finger-proof design



• Broad range of accessories



• World class products conforming to IEC and UL standards



Specification:

 Model: MC-150a  Amp Rating:  AC3 150A  Coil Voltage: 240VAC    – 3-pole(NO) main contact  – Finger proof design  – DIN rail or screw mountable  – Front/side mountable accessories available    – 1NO and 1NC Auxiliary contact built-in as  standard.    Made in korea    Description


• Contactor LS MC-150a



• Rated current 150A (load AC3 voltage 380 / 440V)



•  Capacity   75kw/100hp



• Number of poles 3P.



• Additional contact: 1NO or 1NC.



• Coil Voltage  220v.



• Working temperature -5 to + 55 ° C.



• IP20 protection rating.
