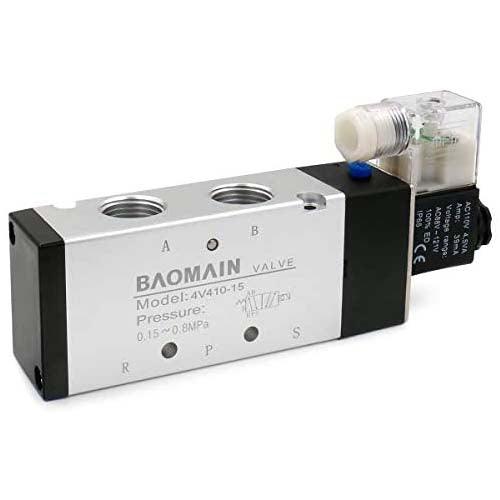

4V410-15 Pneumatic Solenoid Air Valve in Pakistan BR3030
Description
- Standard or Nonstandard: Standard
- Structure: Pilot
- Pressure: Medium Pressure
- Power: Solenoid
- Material: Brass
- Temperature of Media: Medium Temperature
- Media: Water
- Port Size: M5 M6 1/8″ 3/16″ 1/4″ 5/16″ 3/8″ 1/2″ 3/4″ 1″ 2″
- Place of Origin: Zhejiang, China (Mainland)
- Model Number: 4V
- pneumatic: valves
Delivery
| Delivery Detail: | 2-3 days |
|---|
Specifications
Solenoid Valve
1.Acting Type:direct acting
2.Coil Type:DIN type/Flyling lead
3.Protective Class:IP65(DIN40050)
4.100% test
4V series directional solenoid valves have 5/2 and 5/3 types, size from M5 to 1/2″, while 5/2 types have single solenoid type and double solenoid type, Single solenoid valves is repositioned by the spring, and the double solenoid valve is repositioned by the coil. 5/3 type solenoid valve can make the cylinder piston stop at any position.
Specifications of 4v Series Solenoid Valve (3 Position 5 port center pressure)
| Model | 4V130P-M5 | 4V130P-06 | 4V230P-06 | 4V230P-08 | 4V330P-08 | 4V330P-10 | 4V430P-15 |
| Working Medium | Clean Air (40 Micrometer Filteration) | ||||||
| Ways | 3 Position 5 Port | ||||||
| Acting Type | Direct Acting | ||||||
| Joint Size | Import=M5 Export=M5 Exhaust=M5 |
Import=1/8 Export=1/8 Exhaust=1/8 |
Import=1/4 Export=1/4 Exhaust=1/8 |
Import=1/4 Export=1/4 Exhaust=1/4 |
Import=3/8 Export=3/8 Exhaust=1/4 |
Import=1/2 Export=1/2 Exhaust=1/2 |
|
| Sectional Area | 5mm2(CV=0.28) | 9mm2(CV=0.5) | 12mm2(CV=0.67) | 12mm2(CV=0.67) | 18mm2(CV=1.0) | 18mm2(CV=1.0) | 30mm2(CV=1.67) |
| Working Pressure | 0.15~0.9Mpa | ||||||
| Guarantee Pressure | 1.2Mpa | ||||||
| Working Temperature | -5~60°C | ||||||
| Voltage Range | -15%~10% | ||||||
| Heat Resistant Grade | B | ||||||
| Protective Class | IP65(DIN40050) | ||||||
| Coil Type | DIN Type,Flying Leads | ||||||
| Max Acting Frequency | 3 Times/s | 3 Times/s | 3 Time | ||||
